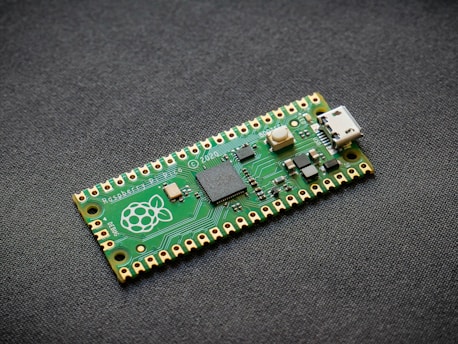

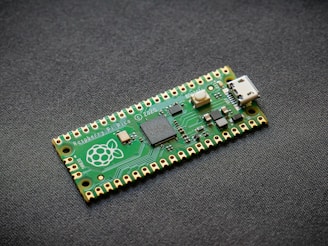

Introduction to the Raspberry Pi Pico Microcontroller

The Raspberry Pi Pico is a significant departure from the traditional Raspberry Pi single-board computers (SBCs) you may be familiar with. Unlike its predecessors that run a full-fledged operating system, the Pico is a microcontroller board. This means it's designed for physical computing—controlling hardware components like LEDs, sensors, and motors to perform specific, repetitive tasks. It's the ideal brain for your custom devices, inventions, and DIY projects.

The Heart of the Pico: The RP2040 Chip

At the core of the Raspberry Pi Pico is the RP2040 microcontroller chip, which was developed in-house by the Raspberry Pi Foundation. This is a powerful and flexible chip that sets the Pico apart. Key features of the RP2040 include:

• Dual-core ARM Cortex-M0+ processor: This dual-core setup allows the Pico to handle multiple tasks efficiently, with a flexible clock speed that can run up to 133 MHz.

• 264KB of on-chip SRAM: A generous amount of RAM for a microcontroller, enabling you to work with more complex code and data.

• 2MB of on-board QSPI Flash memory: This is where your code is stored, and it's large enough for a wide range of projects.

• Programmable I/O (PIO) state machines: This is one of the most innovative features of the RP2040. PIO allows you to create custom hardware interfaces that run independently of the main CPU, providing a high degree of flexibility and power for advanced users.

Technical Specifications and Pinout

The Raspberry Pi Pico has a compact form factor (21 mm × 51 mm) and a user-friendly design. It features 26 multi-function GPIO (General Purpose Input/Output) pins, which are the main interface for connecting external components. Of these, three can be used as analog inputs. Other important features and peripherals include:

• Communication Protocols: It supports various communication protocols essential for electronics projects, including two SPI, two I2C, and two UART controllers.

• PWM Channels: With 16 controllable Pulse-Width Modulation (PWM) channels, you can control the speed of motors or the brightness of LEDs.

• USB 1.1 Host and Device support: This allows for easy drag-and-drop programming over a micro-USB connection.

• Temperature Sensor: A built-in sensor that can be used for monitoring and data logging projects.

• Power: It accepts a wide input voltage range of 1.8–5.5V DC.

There's also a wireless-enabled version, the Raspberry Pi Pico W, which includes a Wi-Fi chip for Internet of Things (IoT) projects.

Programming the Raspberry Pi Pico

The Pico offers a low barrier to entry for beginners while still being powerful enough for professional development. It can be programmed using a variety of methods:

• MicroPython: This is a great starting point for beginners, as it’s a streamlined version of Python designed for microcontrollers. The Thonny IDE is a popular choice for MicroPython development on the Pico.

• C/C++ SDK: For more advanced users who need greater control and performance, the Pico has a robust C/C++ SDK with extensive documentation.

• Arduino IDE: You can also program the Raspberry Pi Pico using the familiar Arduino IDE, which is a great option if you're transitioning from Arduino boards.

Programming is made simple with its drag-and-drop programming feature over USB. You just hold down the BOOTSEL button while plugging it in, and the Pico appears as a mass storage device, allowing you to easily copy your program file to it.

Raspberry Pi Pico vs. Arduino

While the Pico and Arduino boards both serve as microcontrollers, they have some key differences. The Pico's dual-core RP2040 chip gives it significantly more processing power and on-chip memory compared to many entry-level Arduino boards like the Uno. The Pico also has the advantage of the unique PIO subsystem, which offers a level of flexibility not typically found on Arduino boards. However, Arduino has a longer history and a vast ecosystem of shields and community resources, making it a solid choice in many cases. The Pico is often considered a more powerful and cost-effective option for many projects, especially those requiring more computational muscle or custom hardware protocols.
